Specifications

• Ultra-Low Profile Design: With a height of just 5 mm (2 mm heatsink + 3 mm spacer), it’s ideal for compact enclosures and space-constrained applications.
• High-Quality Material: Constructed from copper, ensuring excellent thermal conductivity for effective passive cooling.

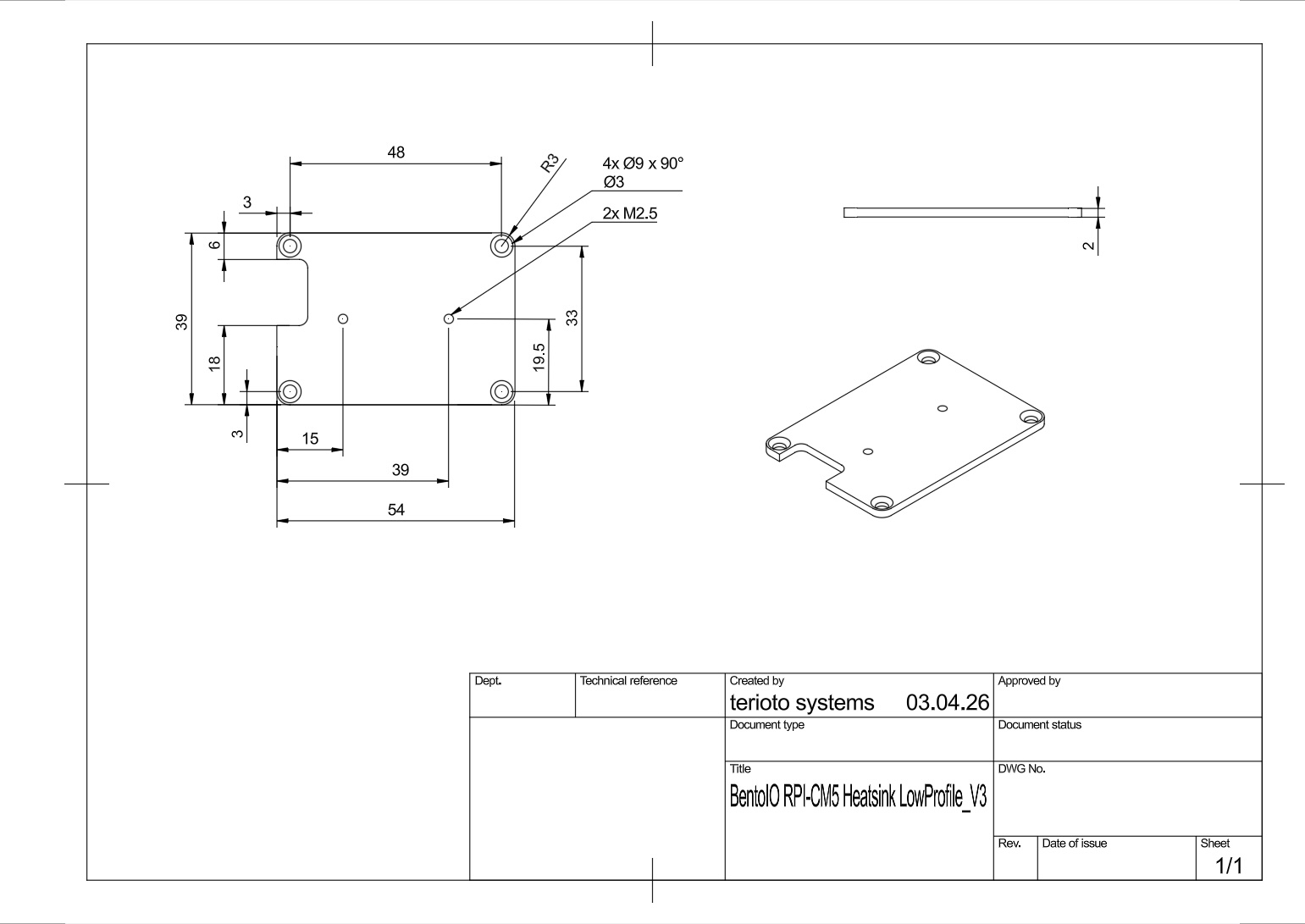

• Precise Dimensions: Measures 54 x 39 mm, perfectly matching the Raspberry Pi CM5 footprint.
• Secure Mounting: Features M2.5 mounting holes for stable and straightforward installation from the top.

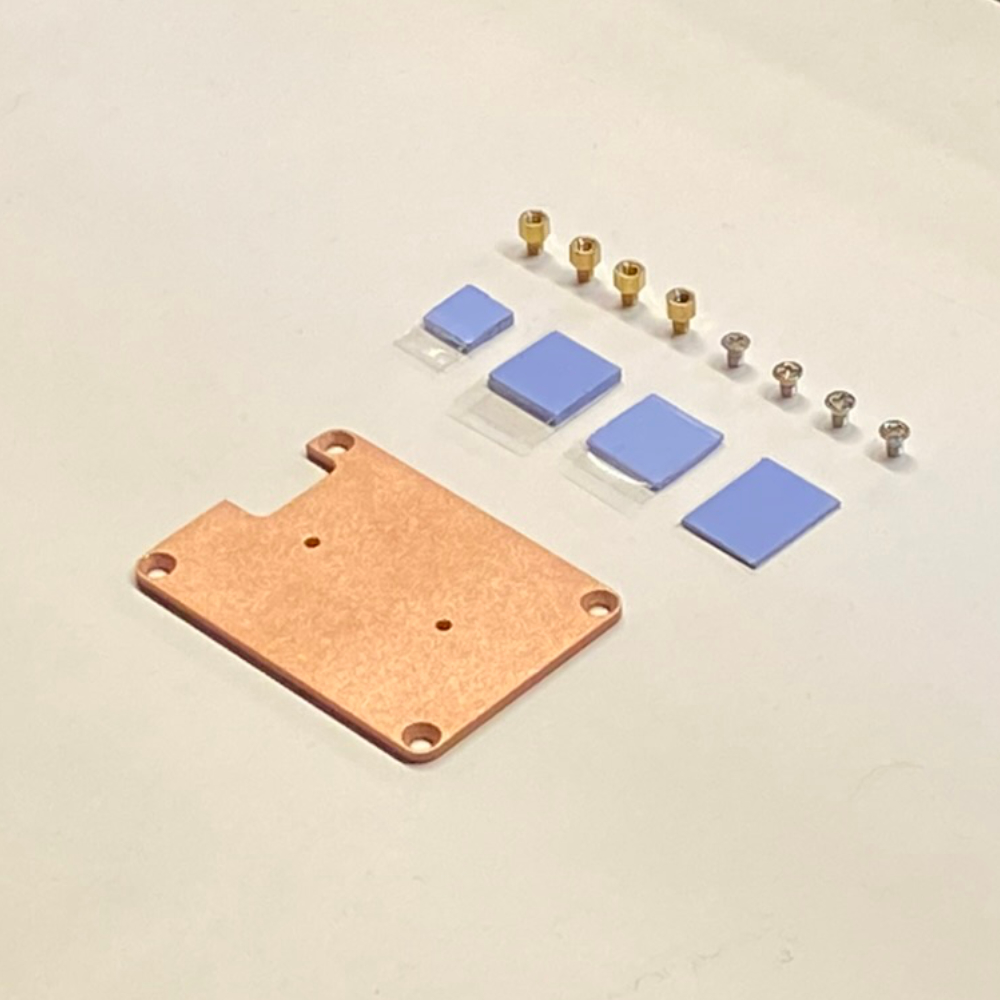

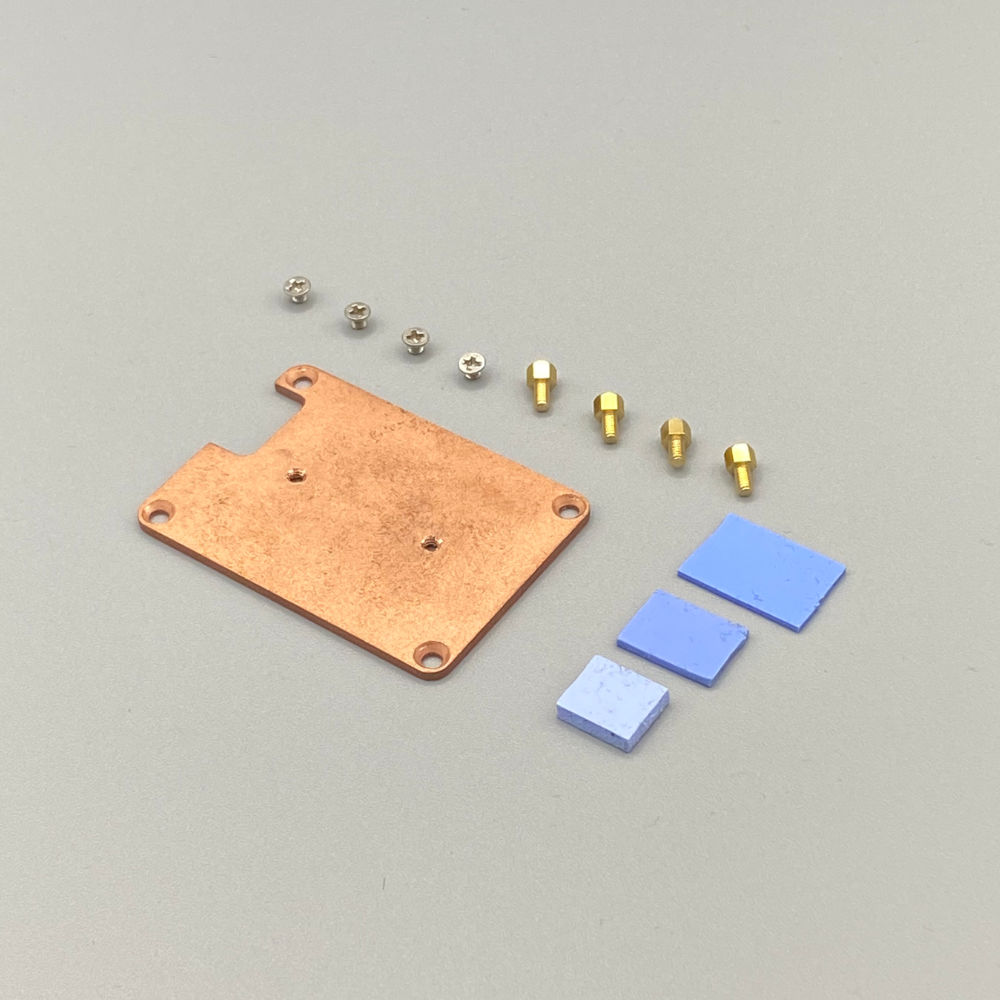

• Complete Installation Kit:
  • 1 x Copper Heatsink

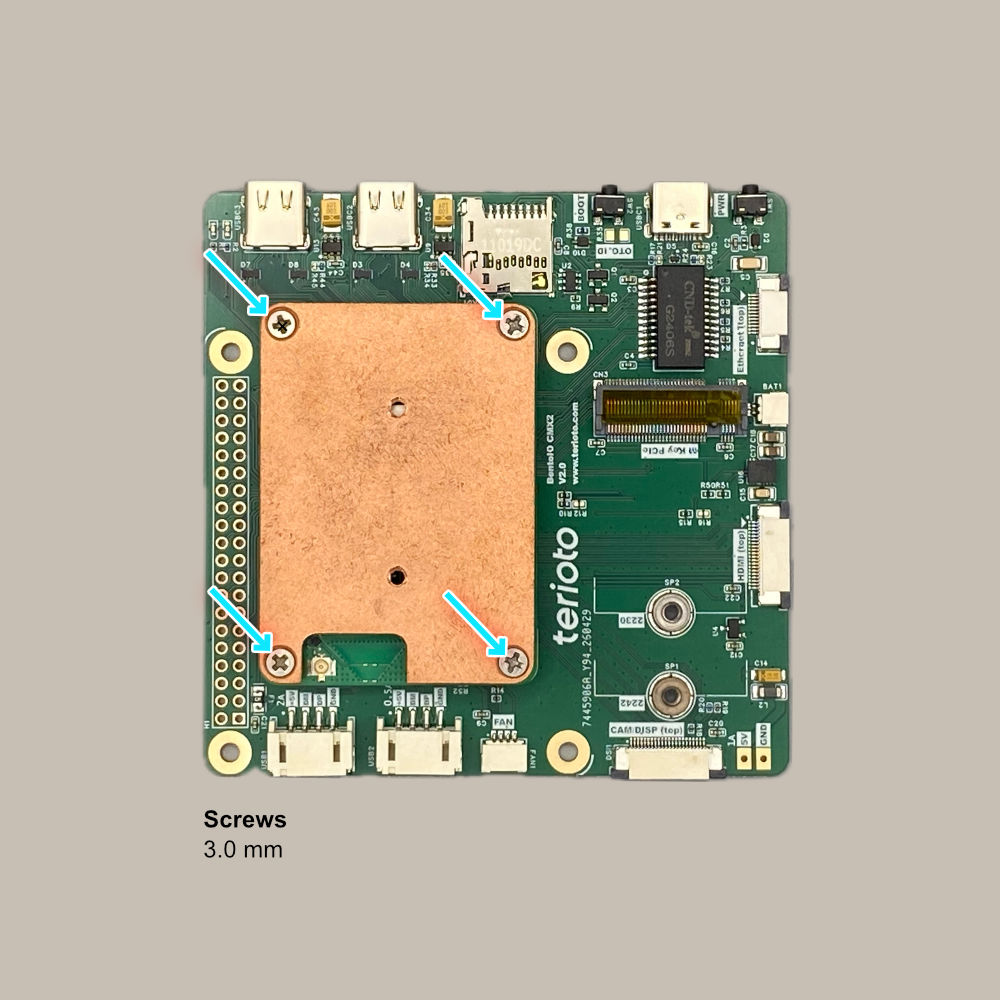

  • 4 x M2.5 H3mm Screws

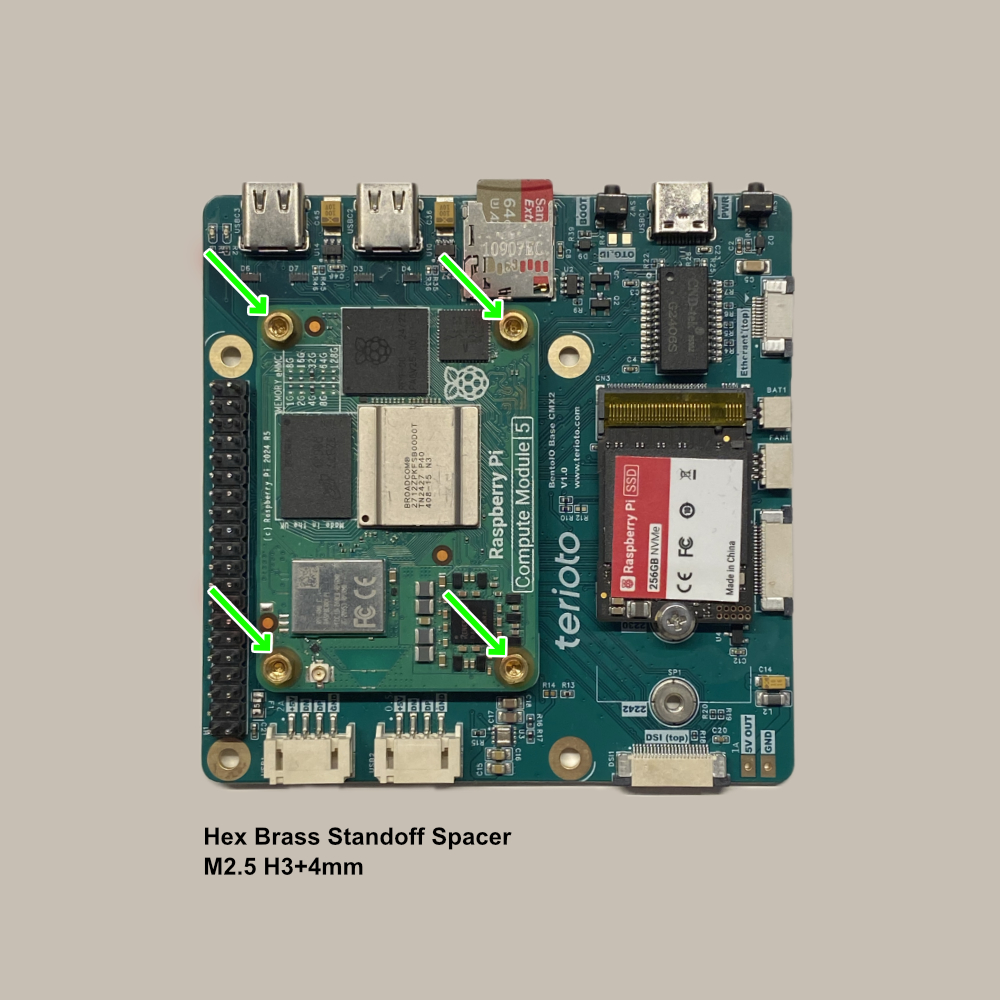

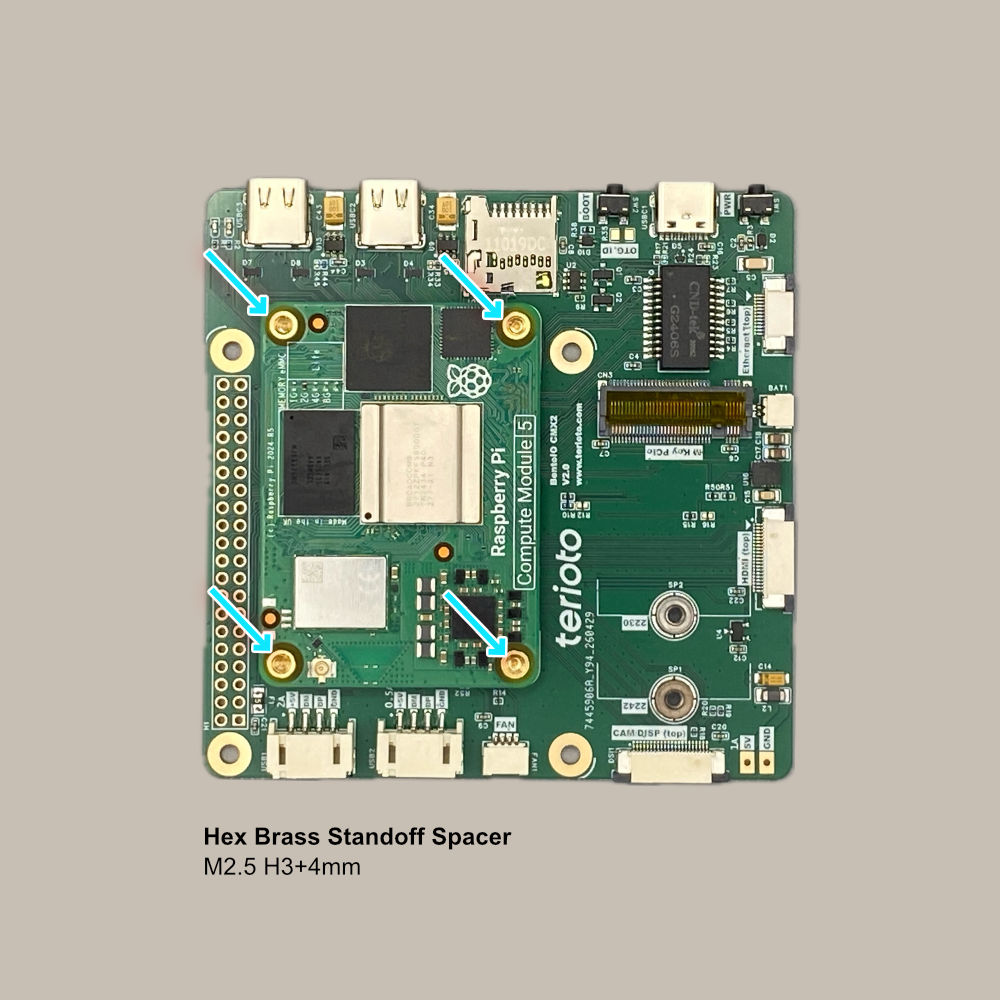

  • 4 x M2.5 H3+4mm Hex Brass Standoff Spacer

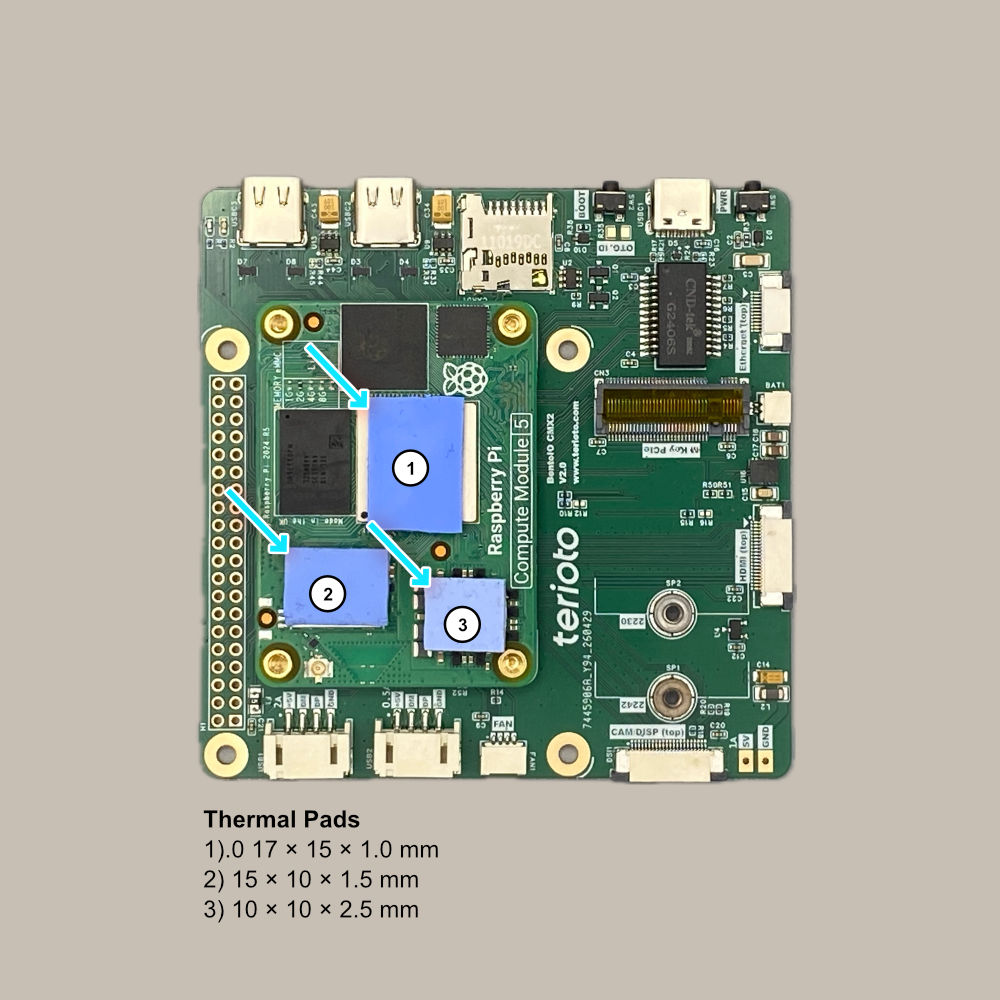

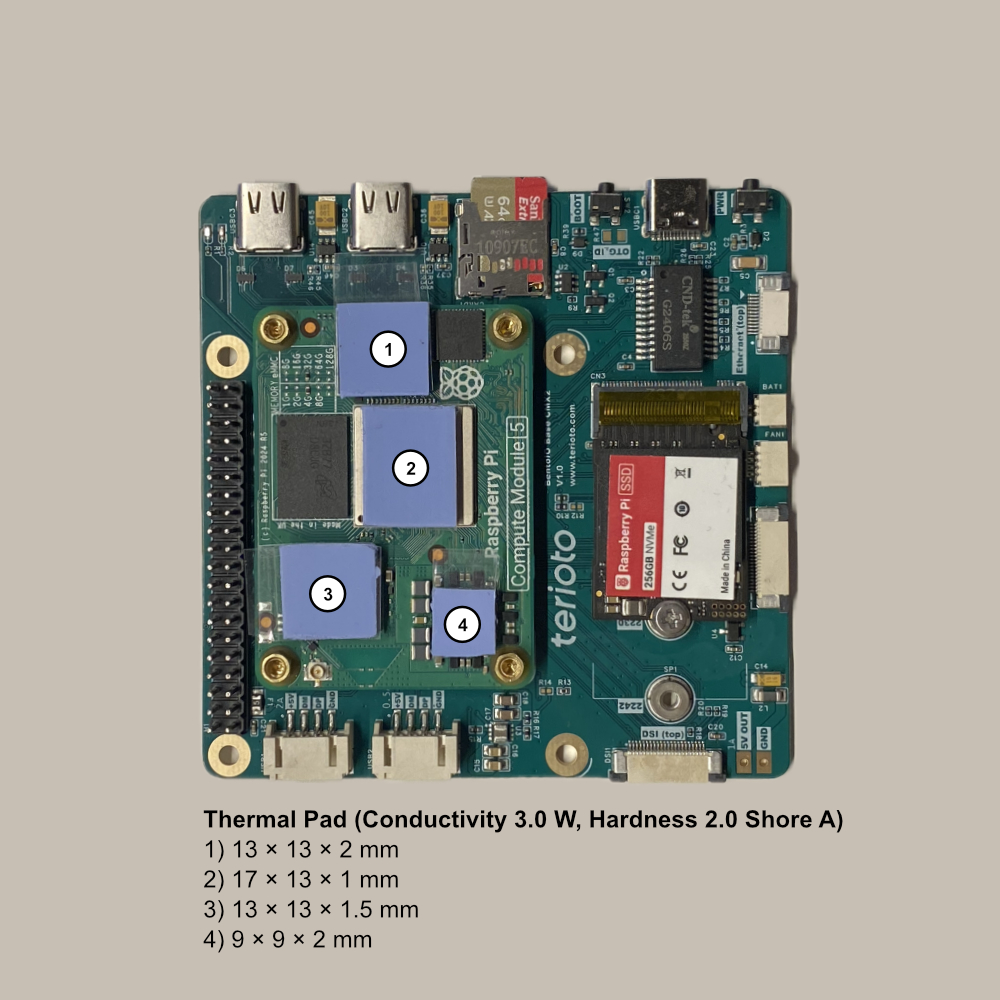

  • 3 x Thermal Pads
