Docu BentoIO CMX LAN/HDMI Adatper V2

Version 2.0

Key Features

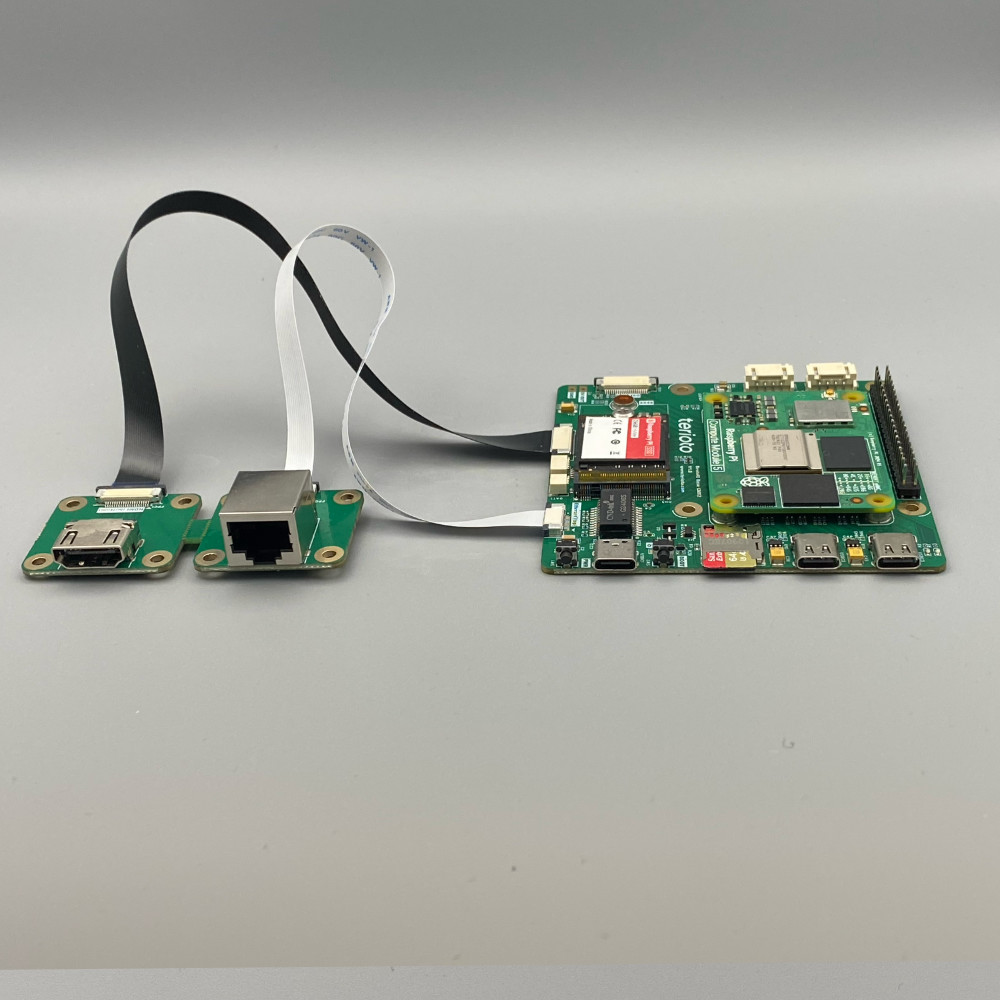

  • The BentoIO CMX Expansion Board for LAN & HDMI is a compact adapter designed specifically for the BentoIO CMX1 and CMX2 system. It extends the BentoIO CMX series with a full-size Ethernet (LAN) port and a full-size HDMI connector, enabling easy network connectivity and direct display output.
  • This expansion board is ideal for setups that require a stable wired network connection and an external monitor, such as development, configuration, testing, or embedded applications. Designed for seamless integration with the BentoIO CMX1, it provides a clean and reliable way to access essential I/O without compromising the modular concept of the system.
Contents

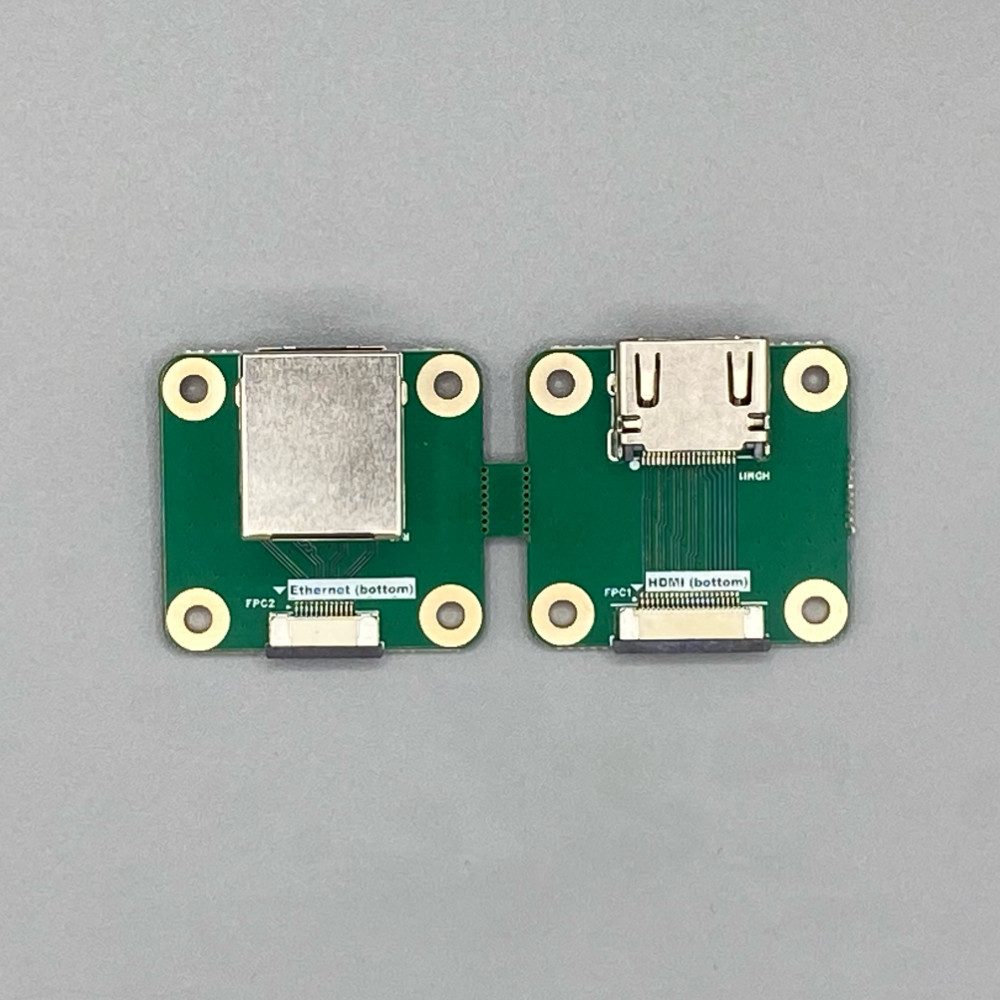

  • terioto CMX LAN / HDMI adapter
  • FPC cable for HDMI and LAN
Resources
terioto_CMX_LAN_HDMI_Adapter_V2.0.stepDownload
