Specifications

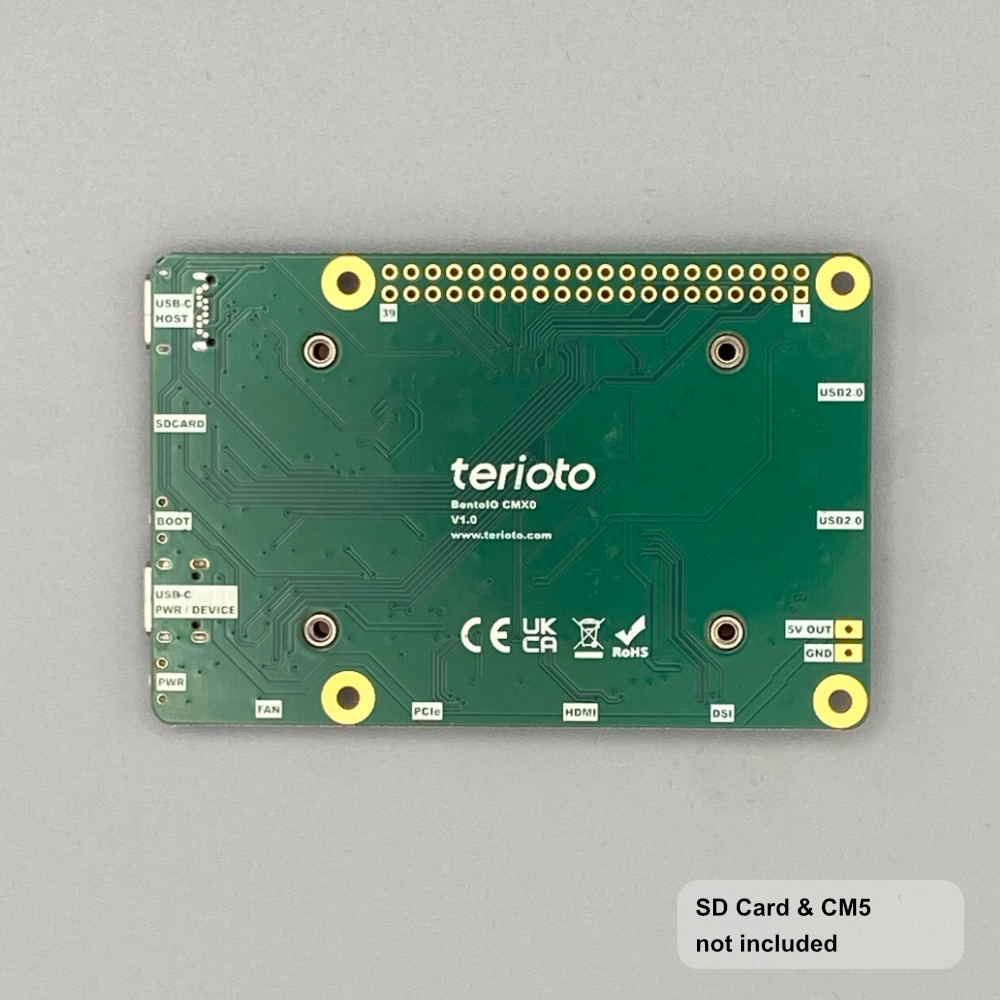

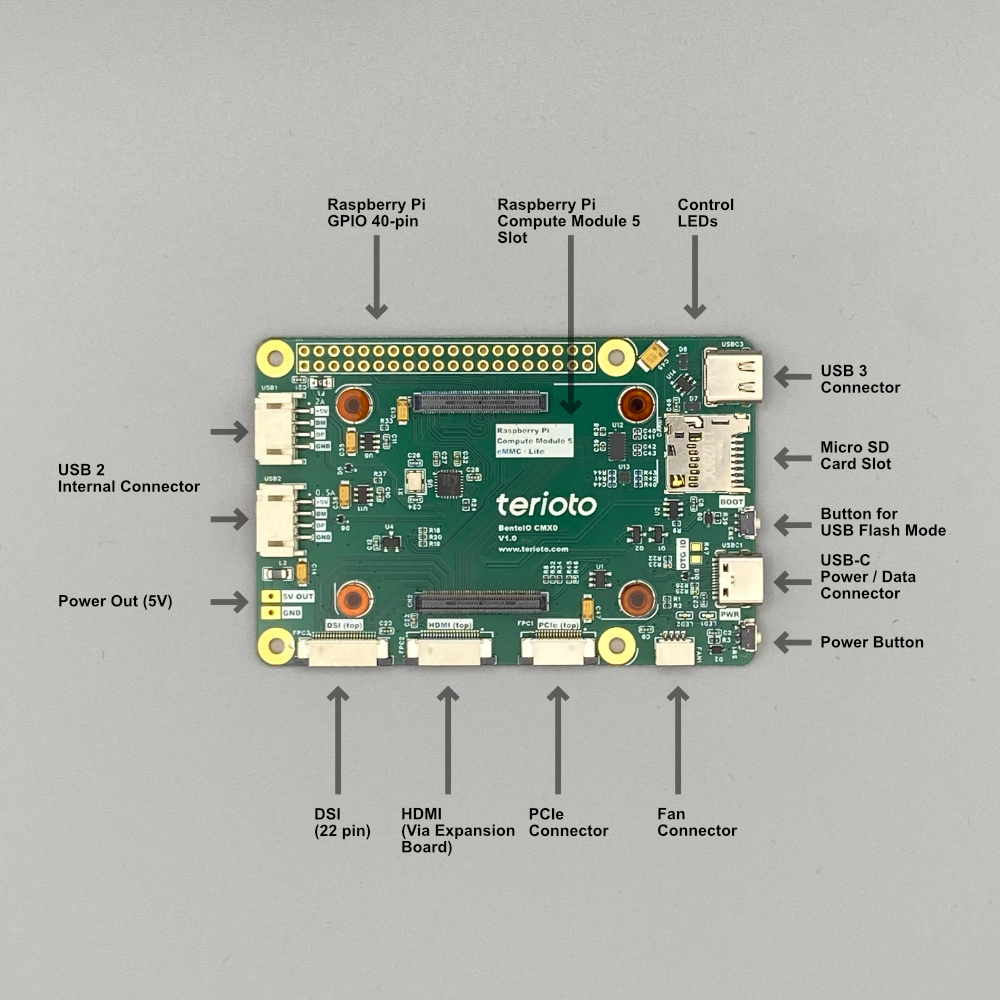

Key Features

• Form Factor: Compact 85 × 56 mm footprint; low-profile design with only 7 mm height without CM5 and heatsink

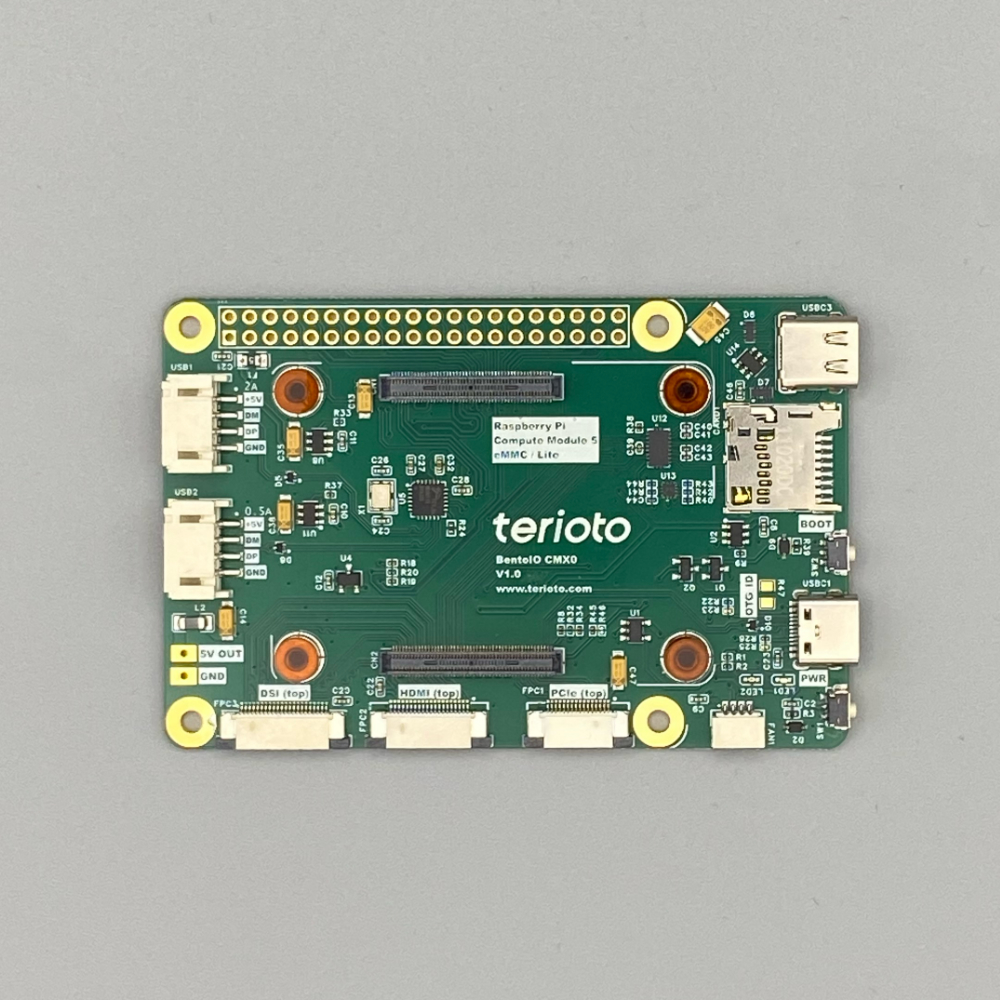

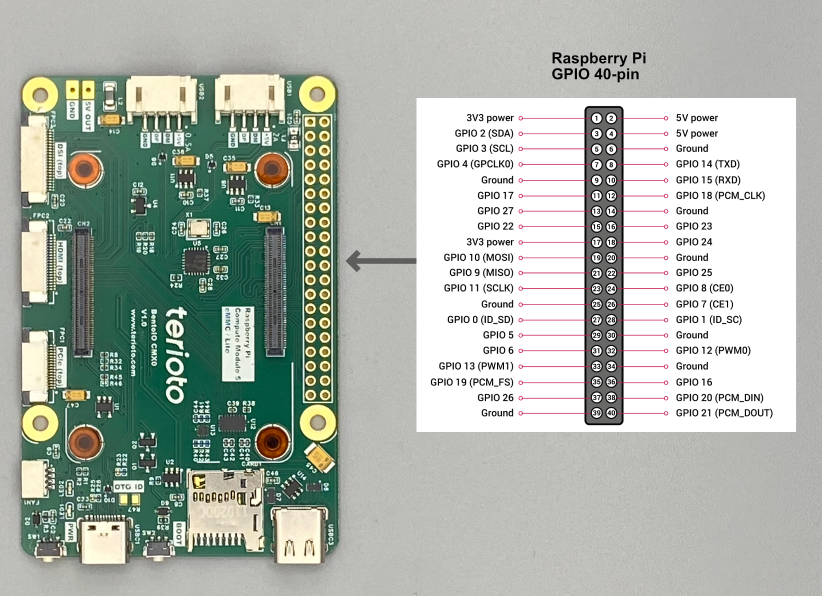

• GPIO: Standard 40-pin Raspberry Pi-compatible GPIO pins
• Mounting: Mounting holes follow the Raspberry Pi standard

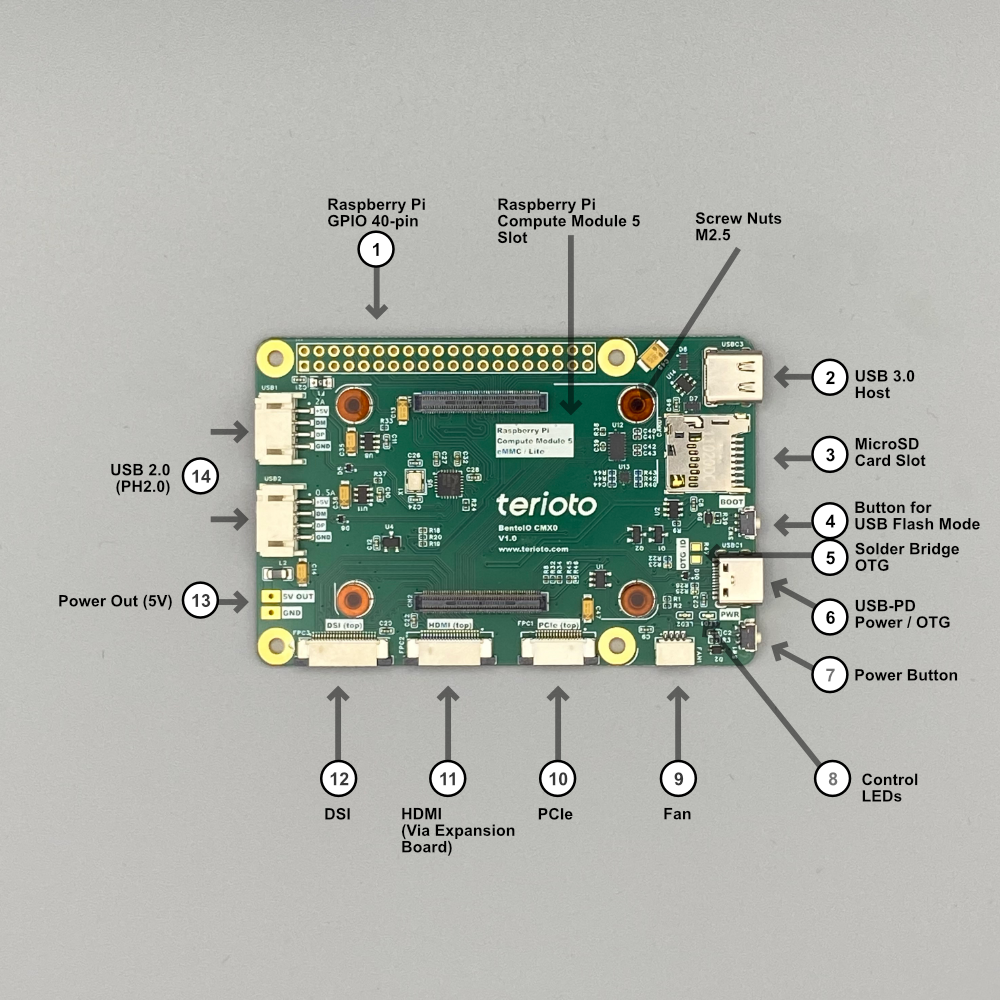

Interfaces & Connectivity

• USB:
  • 1x USB for power / flash mode / device mode
  • 1× USB 3.0 Host (USB-C)
  • 2× internal USB 2.0 headers (PH2.0)
• Video Output:
  • 1x HDMI output via HDMI/LAN daughterboard
  • 1× MIPI DSI FPC connectors (22-pin, 0.5 mm pitch)
• PCIe:
  • PCIe connector
• Power Supply:
  • USB-C input (+5 V)
• Additional Connections:
  • 4-pin fan connector
  • Power button
  • Flash mode button
  • microSD slot for CM5 Lite modules (without eMMC)
