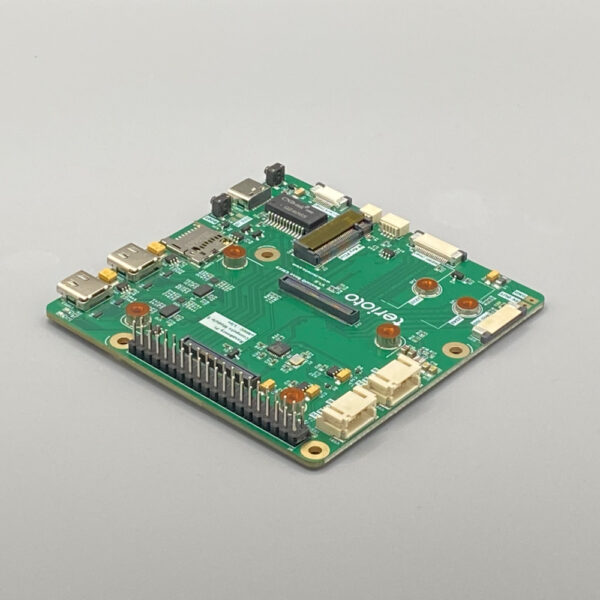

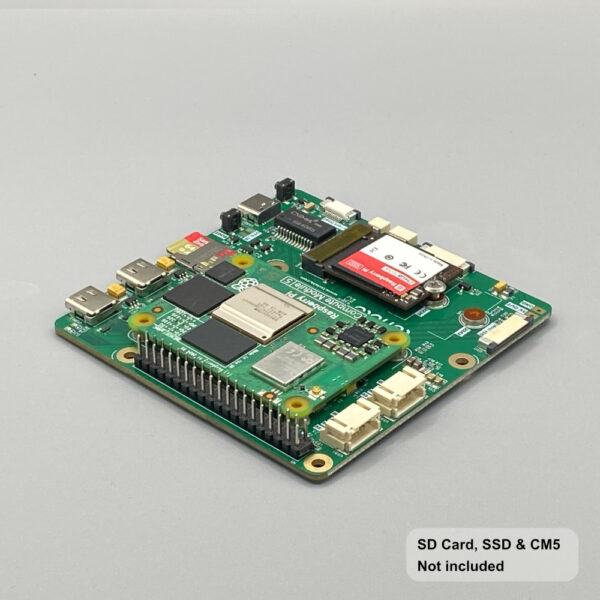

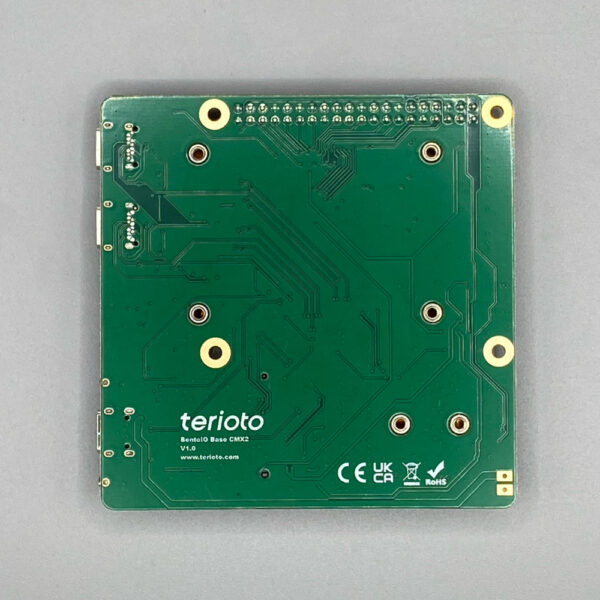

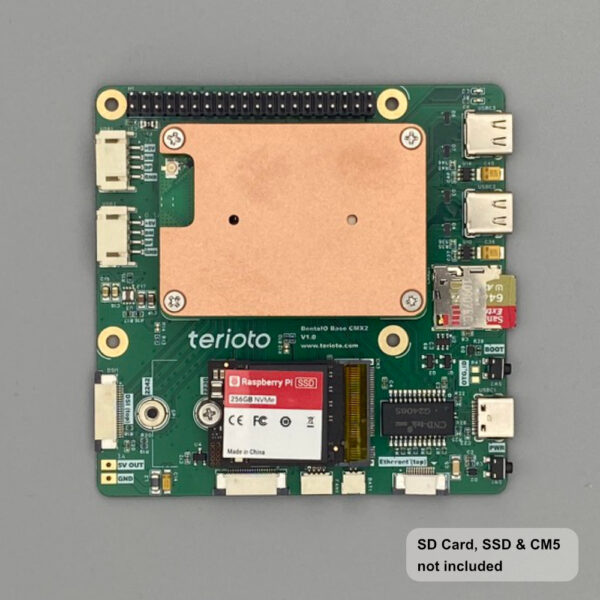

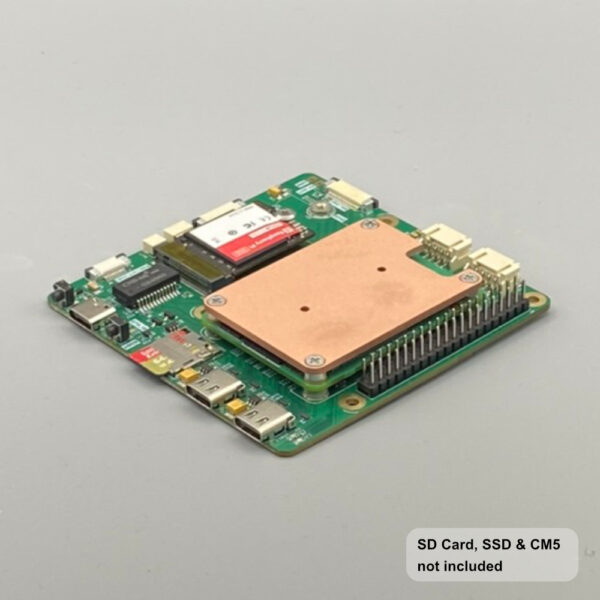

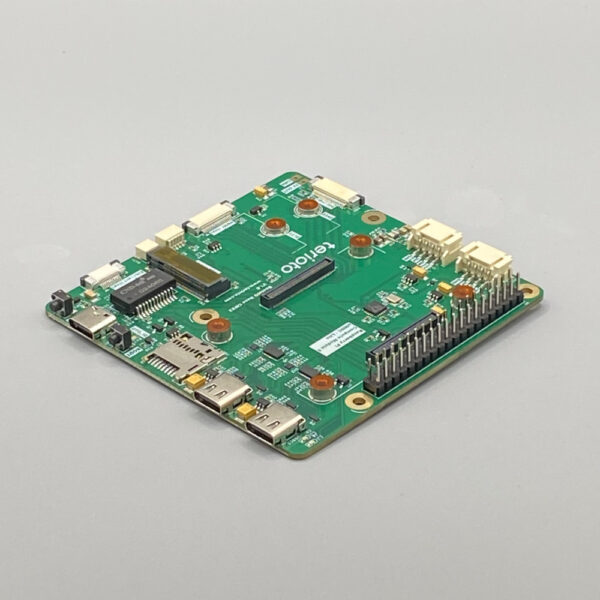

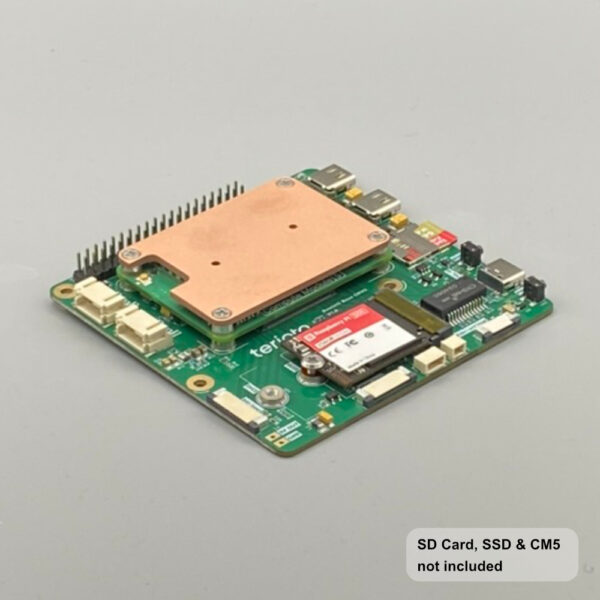

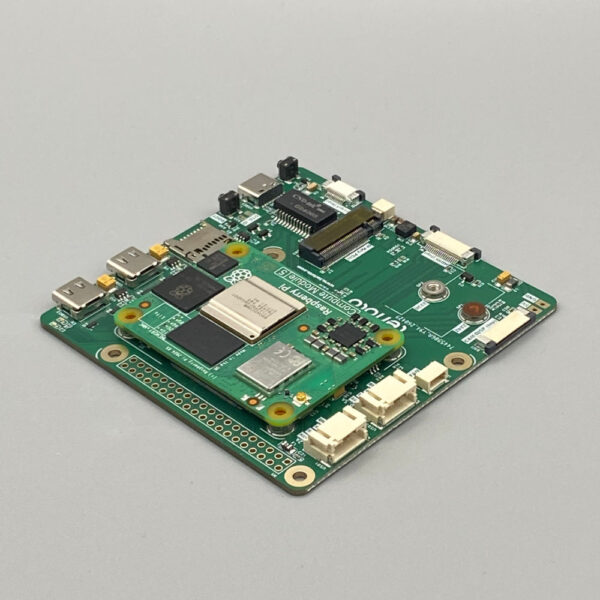

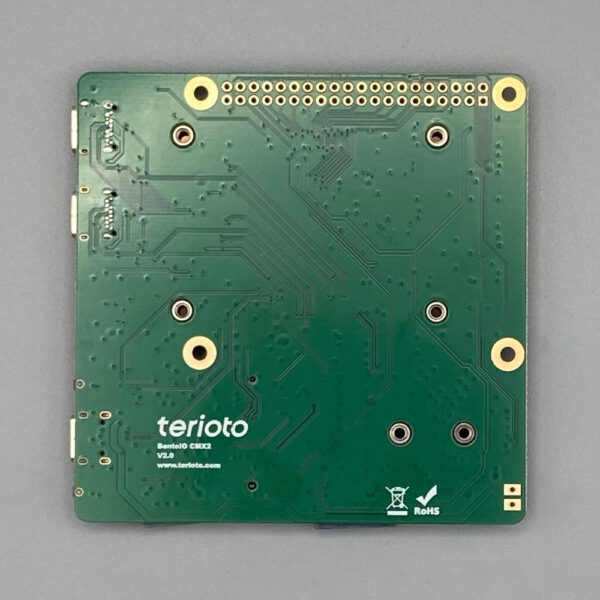

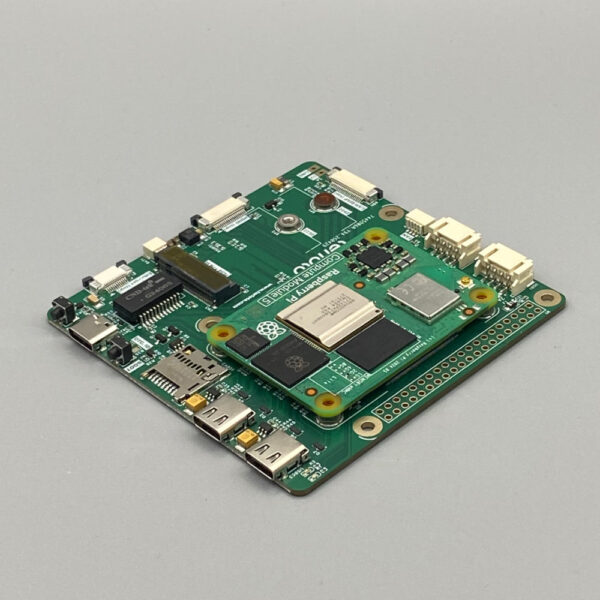

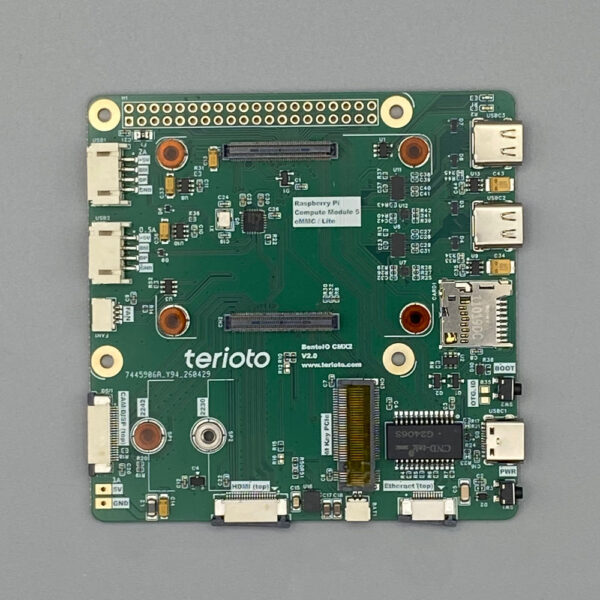

BentoIO CMX2 IO-Carrier Board for Raspberry Pi Compute Module 5 + Low Profile Heatsink

99,00

Low profile IO-Carrier Board for Raspberry Pi CM5 with heatsink

Lieferzeit: 1–2 business days (Germany)

In stock (can be backordered)

Options

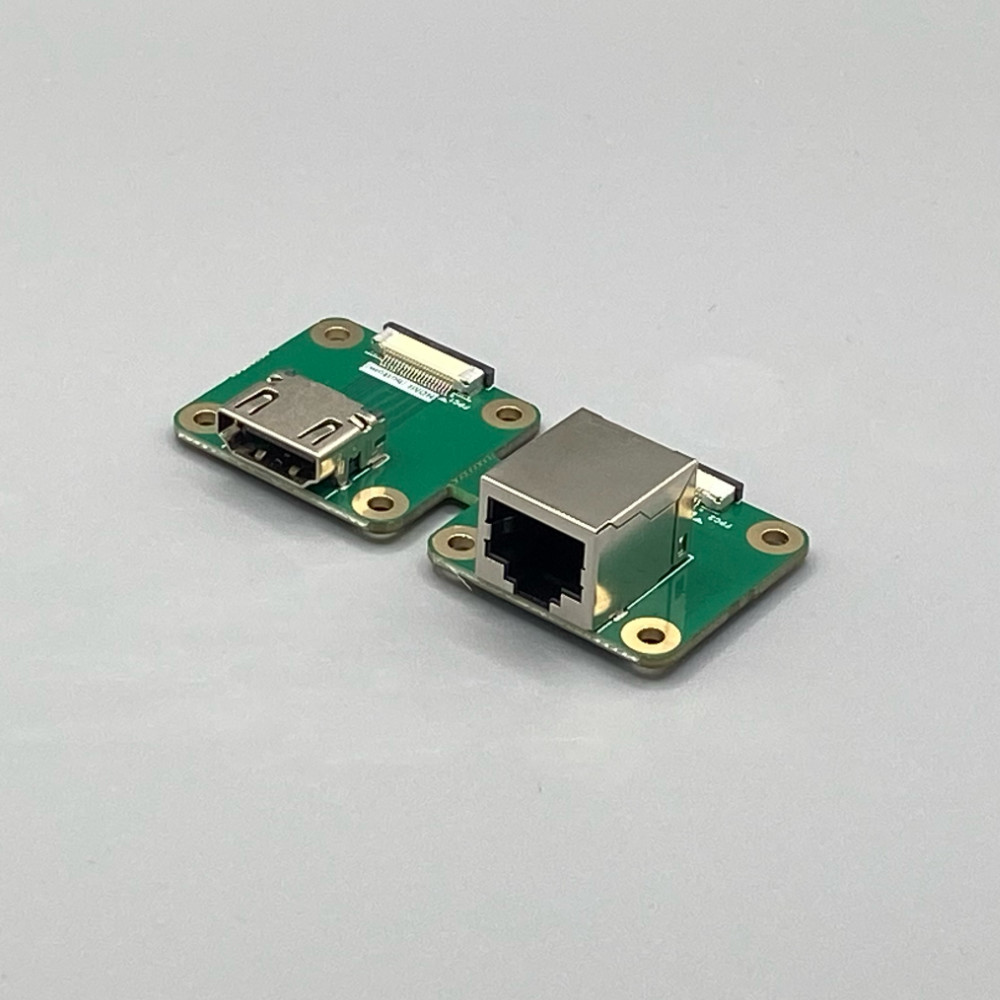

BentoIO CMX Expansion Board for LAN / HDMI

BentoIO CMX Expansion Board for LAN / HDMI

SKU: terioto-bentoio-cmx2-v2-set-2 Category: Tags: , , Brand:

Specification

  • IO Board for Raspberry Compute Module 5 lite / eMMC support (CM4 not supported)
  • Form factor 85 mm × 85 mm

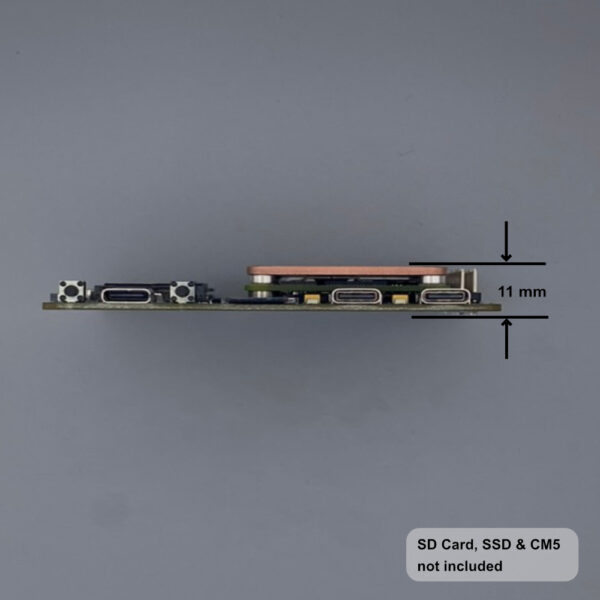

  • Low profile 11 mm
  • Raspberry Standard 40-pin GPIO pins
  • Raspberry Pi mounting holes
  • Gigabit Ethernet via daughter board
  • HDMI via daughter board
  • DSI / CSI FPC connectors (22-pin 0.5 mm pitch)
  • 2 x USB 3 sockets (USB-C)
  • 2 x USB 2 internal sockets (PH2.0)
  • microSD card socket for CM5 Lite modules
  • M.2 M key PCIe socket (2230 / 2242)
  • RTC battery connector
  • Fan connector (4-pin)
  • USB-C Power Supply +5V
  • Button for power on / off
  • Button for flash mode

Contents

  • terioto BentoIO CMX2 IO board

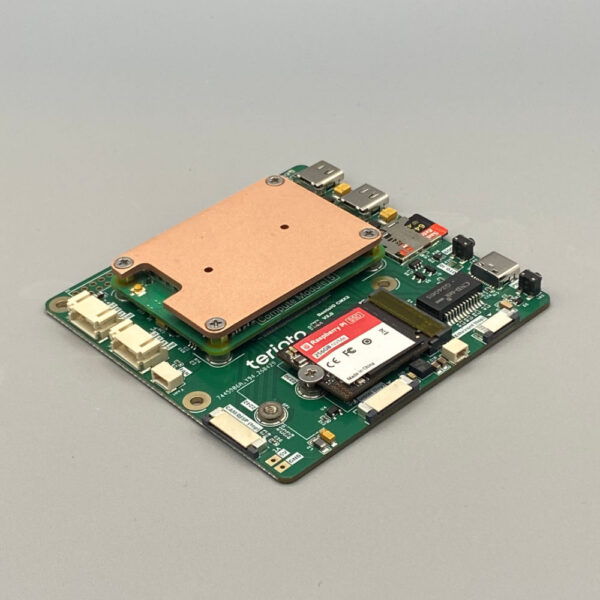

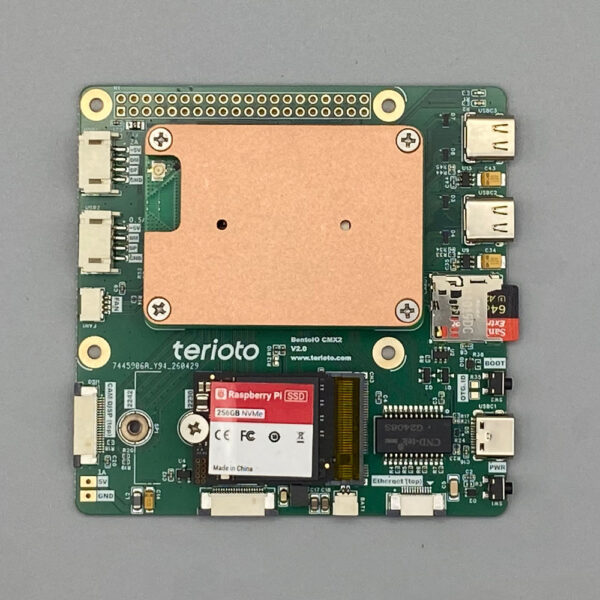

  • terioto BentoIO CMX Low Profile Heatsink
  • 40 Pin Header for GPIO standard
  • 40 Pin Header for GPIO right angled

Support

Documentation: BentoIO CMX2 IO-Carrier-Board

Documentation: BentoIO Low Profile Heatsink-CM5

Weight 0,045 g
Dimensions 8,5 × 8,5 × 1,1 mm
